DC AC Car Power Inverter 12V 220V 300W Converter Adapter DC 12V to AC 220V with Battery Clip For Home Solar Appliances Outdoors

Adaptability:
1. [Automobile power inverter] Automobile power inverter with USB port and AC socket. The power inverter is equipped with 2 battery clips or cigarette lighter plugs to provide 150 W continuous power; 180 W maximum continuous power and 300 W peak power (please ensure that the total rated power of the connected equipment is ≤ 150 W).
2. [150W; with green LED display] It is a working light; which can display and remind you of the working state of the inverter. During normal operation; the green light is on.
3. [Fast charging dual USB ports] One AC socket and one USB port can provide 100% fast charging for mobile phones; computers; laptops; breast pumps; atomizers; razors; medical rescue equipment; emergency equipment; etc. It can be used as an emergency power supply. The USB port can charge most mobile phones. The AC socket is suitable for laptops; drones; fans; cameras; CPAP machines; game consoles; kindles; televisions; DVD players; lights; iPads; RVs and other electronic devices.
4. [Multiple protection] The built-in fuse; safe charging design and cooling fan prevent the automobile power converter from overheating and save power and energy. Protection against overvoltage; overload; overcurrent; short circuit; undervoltage; overheating and short circuit.
5. [Lightweight design and top quality] Lightweight and compact; it is very suitable for vacation; camping and work travel. It can be plugged into almost any 12V power output vehicle to provide charging opportunities anywhere.
6. [Multi purpose] It can be used as automobile power converter; automobile adapter; mobile phone charger; outdoor power supply; power failure emergency power supply; etc.
7. [Widely used] The power inverter is used for vehicles with continuous power of 150W and surge power of 300W. It is widely used in camping; road travel; outdoor work; power failure; etc. Universal standard 220V AC power socket can better connect multiple appliances.

Specifications:
Name: Automobile power inverter.
Color: silver

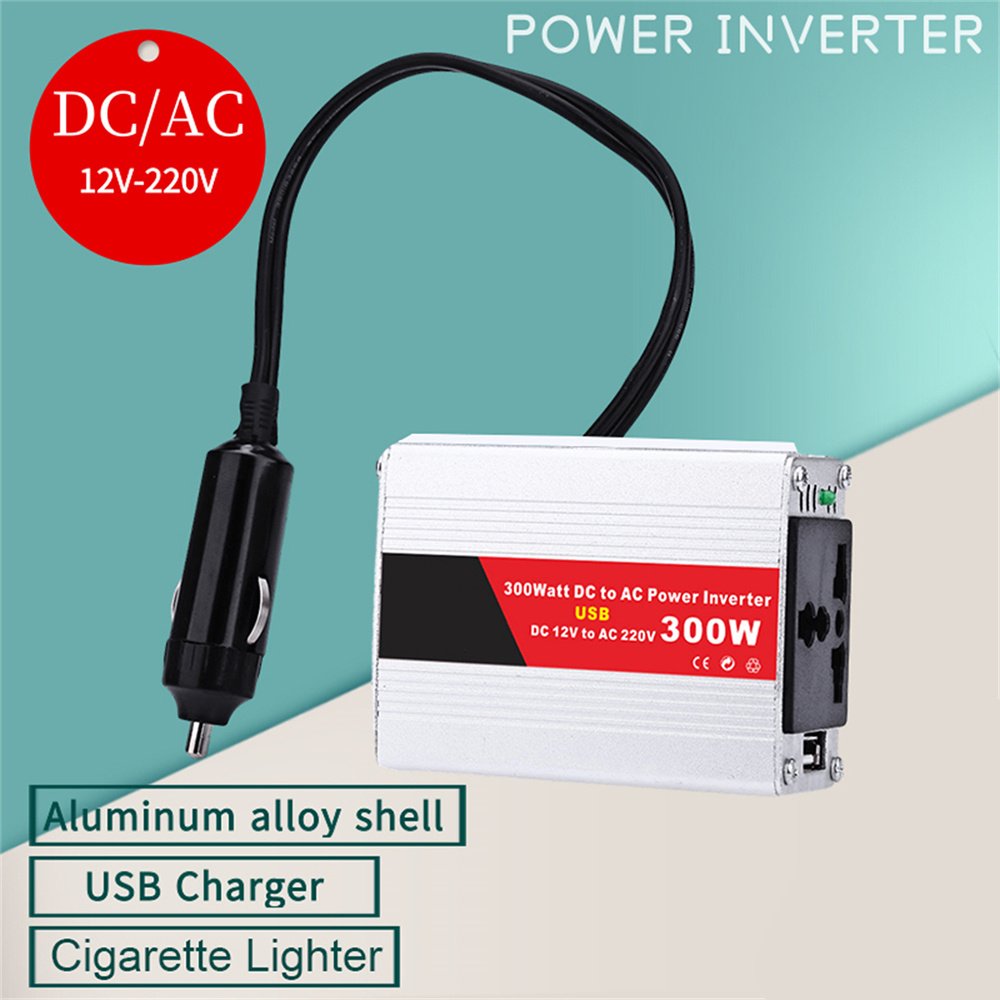

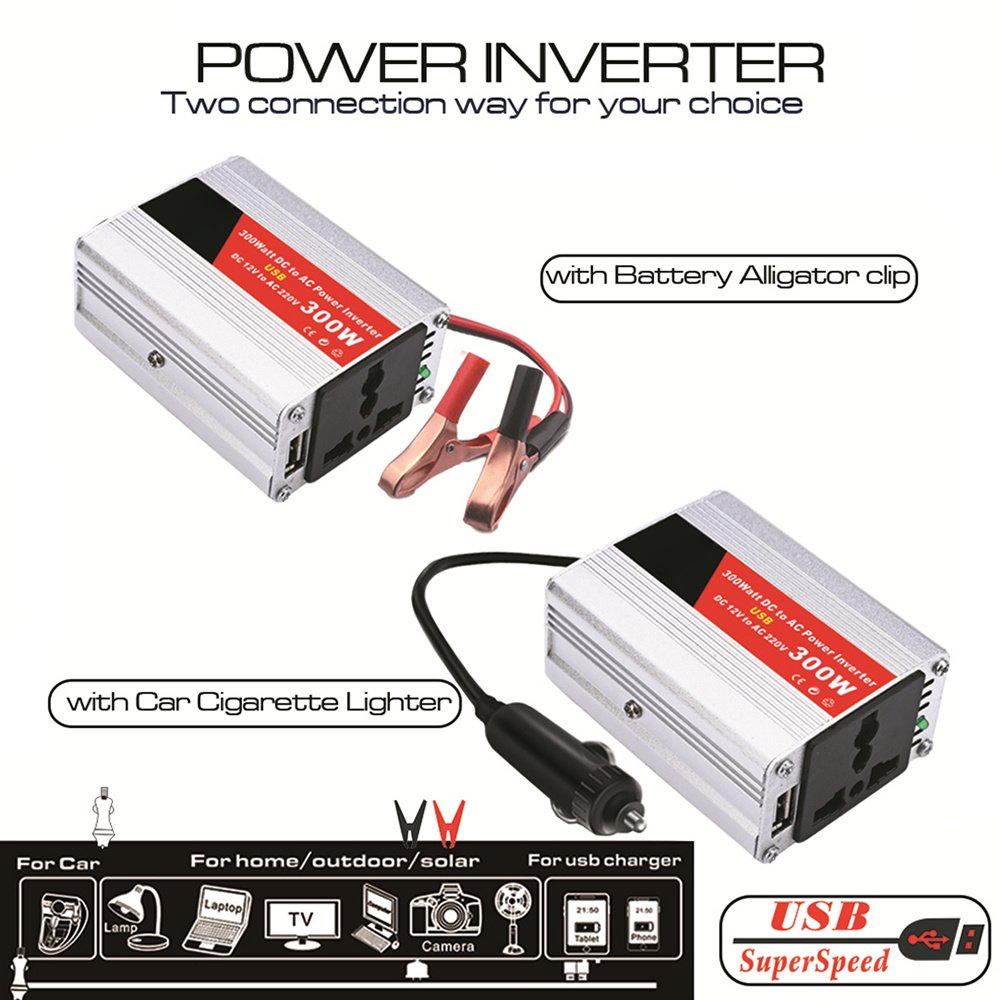

Connect DC power supply: with battery clip or cigarette lighter plug for your choice
Input voltage: DC 10.5V~15V.
(When the battery voltage is lower than 10.5V; the inverter is under low voltage protection; when the battery voltage is higher than 15V; the inverter is under high voltage protection)
Output voltage: AC220V
Output frequency: 220V model 50Hz
Peak power: 300W
Rated power: 150W
Output waveform: corrected sine wave
Product size: 85 * 65 * 38mm
Package size: 160x80x50mm
Weight: 0.3kg
Available range of rated voltage of electrical appliances: 200~240V
Safety range of inverter input voltage: 12V (9.8~15V)
8 Safety protection function: ① polarity reverse connection protection ② low input voltage protection ③ high input voltage protection ④ overcurrent protection ⑤ short circuit protection ⑥ over temperature protection ⑦ overload protection ⑧ internal fuse

Packing list:
1 inverter+English instruction+1 packing box

be careful
① Please ensure that the rated power is higher than the electrical appliance you want to apply. We recommend that you purchase a larger model than you think you need (at least 10% to 20% more than the maximum load).
② If you want to run multiple devices at the same time; you should refer to the total wattage.
③ If you want to operate inductive load for a long time; it is recommended to purchase pure sine wave inverter.

look out!
-1. This is an improved sine wave inverter; which is not applicable to equipment working through built-in motors; hair dryers; air conditioners; coffee makers; water pumps; induction cookers; refrigerators and microwave ovens. Ensure that the total power rating of the connected equipment is ≤ 150 watts
-2. When using the automobile converter; tighten the positive (+) and negative (-) terminals
-3. Automobile converter is only applicable to DC12V and automobile; not DC24V and airplane
-4. Before starting the vehicle; do not put the inverter in the ON position. It is easy to damage the inverter before connecting it to the battery. The correct operation is to connect the battery first; and then turn on the inverter switch.
-5. When using the inverter; it is normal for the inverter to become hot. For best results; place the inverter on a flat surface. The workplace shall meet the following standards:
1. Keep it dry. Do not let the inverter touch water or other liquids. Keep the inverter away from moisture or water.
2. Keep the temperature between 0 ℃ and 40 ℃ in a cool environment. Do not place the inverter near the vent or other equipment. Try to avoid direct sunlight on the inverter.


Calculation of battery life:
1) The working time of the inverter depends on the battery power and load power.
2) Formula: working time (hours)=battery capacity X battery voltage X 0.8X0.9/load power
3) For example; a 12V 60A battery is supplied to a 220V 100W bulb.
Working time=12 (V) X 60 (AH) X 0.8 X 0.9/100 (W)=5.18 (hours)

Note: 0.8 discharge coefficient of battery; 0.9 conversion efficiency of inverter

What size of power inverter do I need?
The size you choose depends on the power (or amperage) you want to run (find the power consumption by referring to the specification plate on the equipment or tool). We recommend that you purchase a larger model than you think you need (at least 10% to 20% more than the maximum load).
